制鞋试验机系列

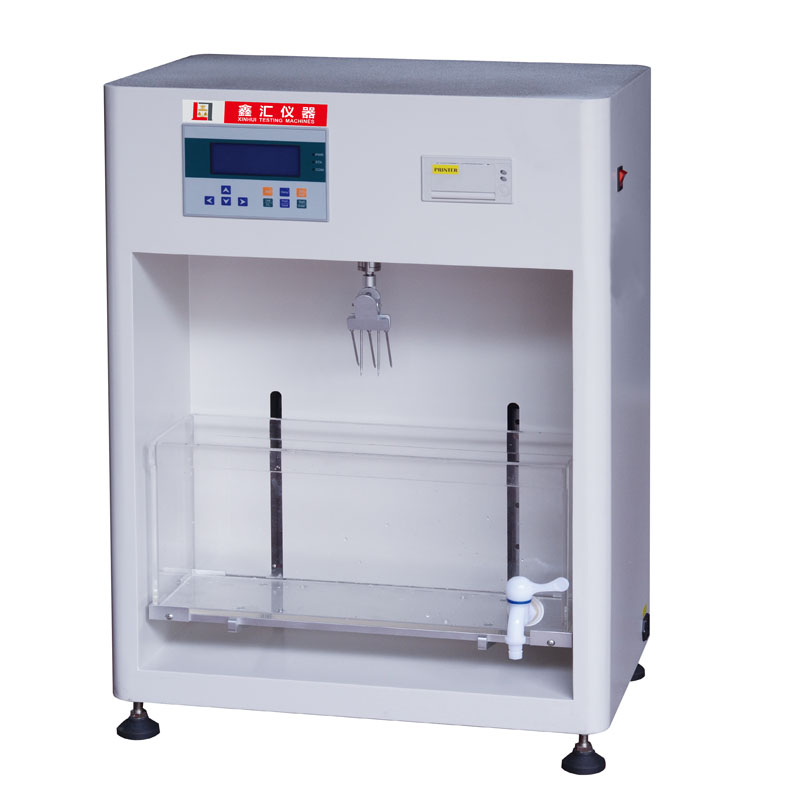

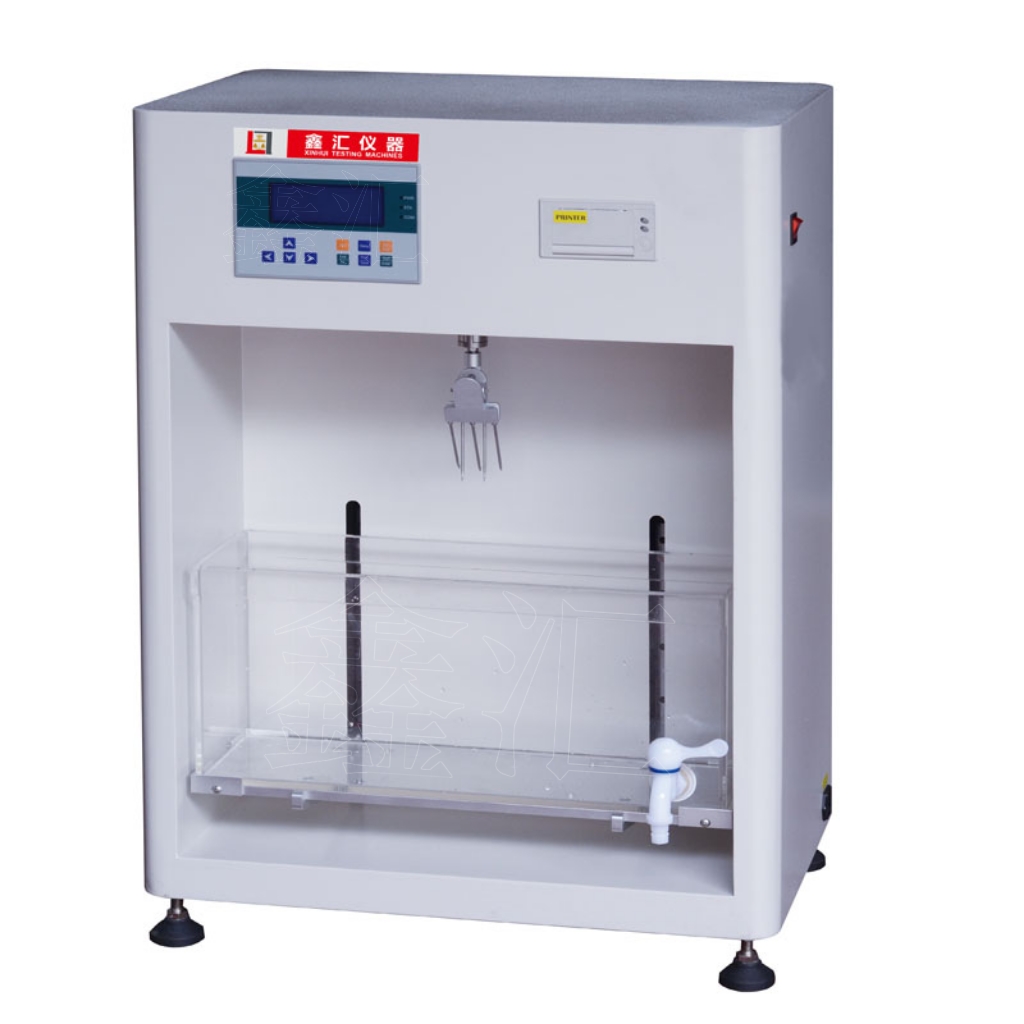

XH-2190 比重测定仪

本机为精密数字式比重试验机;用于测试橡胶、塑胶、EVA 发泡等鞋底之比重值。采用高感度感应组件及自动升降水槽装置,自动监测并计算。配备不同夹具连方便替换;具有参数储存并读出功能;打印测试结果等功能。 This machine is a precise digital gravitometer used for measuring the specific gravity of outsoles made of rubber, plastics or EVA foam.High sensitivity assembly and automatic lifting tank are used for automatic monitoring and calculation. Various clamps are available for your convenience. It can save and read out parameters. Test result can be printed out.

详细描述

主要规格参数


容量 Capacity
1kgf
荷重精度 Load Accuracy
±1%

水箱体积 Volume of Water Tank

(L×W×Hmm

490 ×145 ×225
升降台行程 Stroke
250mm
夹具 Grips
Insert ×1,clip ×1
打印 PrintingCompact printer
体积 Dimension(W×D×H)cm
58 ×40 ×89
重量(约)Weight(approx.)
90 kg
电源 Power
1∮,AC 220V,50/60Hz


产品规格如有变更,恕不另行告知,请以实际报价为准!

点击数:324    更新时间:2019-09-28 10:51:52
