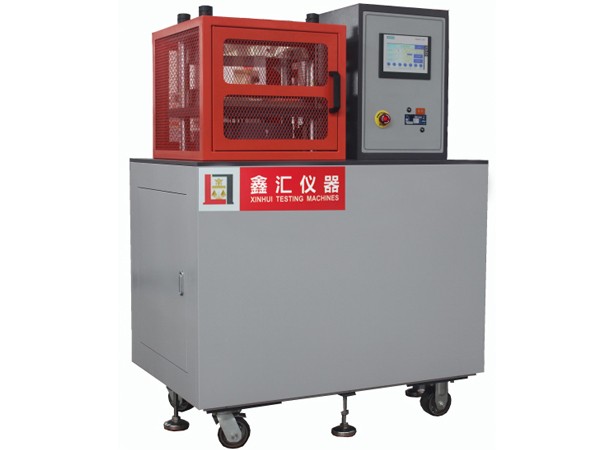

XH-6014-H Molding Test Press

Technical parameter：ModelXH-6014-H Capacity10T / 20T / 30T / 50T / 65T / 80T/ 100T (optional )TemperatureRoom temp~300℃Temp. controllerP.I.D.+LEDCooling methodwater(optional) Heat plate area300×3

Detailed

Technical parameter：

Model

XH-6014-H

Capacity

10T / 20T / 30T / 50T / 65T / 80T

/ 100T (optional )

Temperature

Room temp~300℃

Temp. controller

P.I.D.+LED

Cooling method

water(optional)

 Heat plate area

300×300 mm

Stroke: Max

200 mm

 Speed

11mm / s

Timer

LED, 0.1S~99min~9.9hr

 Dimensions(W×D×H)

100×50×150 cm

Weight (approx.)

560 kg

Power supply

 3∮, AC220V, 20A



If there is any change in product specifications, we will not inform you otherwise. Please take the actual quotation as the criterion！
